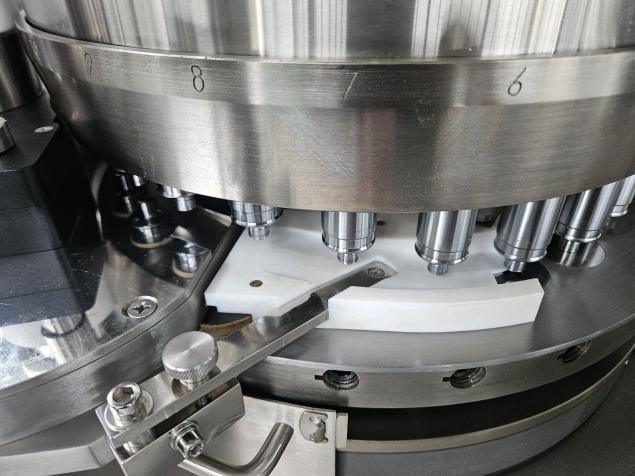

Compression Machine Qualification – Key Points
A risk-based qualification lifecycle starting with URS and design qualification, followed by FAT and SAT, and then IQ, OQ, and PQ. During IQ, verify equipment identification, installation, utilities, material of construction, drawings, documentation, and calibration status. During OQ, challenge critical machine functions such as turret speed, feeder operation, fill depth, pre-compression and main compression force, tablet thickness, weight-control system, alarms, and interlocks across predefined operating ranges. I would also verify the computerized system, access controls, and applicable data-integrity controls. During PQ, demonstrate consistent equipment performance under routine manufacturing conditions and evaluate relevant CQAs such as tablet weight, hardness, thickness, friability, disintegration, dissolution, and appearance. Any deviation would be investigated through documented impact assessment, root-cause investigation, and CAPA where required. Ensure that change control, cleaning validation, calibration, preventive maintenance, and periodic review are incorporated into the equipment lifecycle.
“Qualification proves that the compression machine is suitable and capable; process validation proves that the manufacturing process using that machine can consistently produce tablets meeting predetermined quality requirements.”
1. Qualification Lifecycle
URS → Risk Assessment → DQ → FAT → SAT → IQ → OQ → PQ → Process Validation
- IQ: Was it installed correctly?
- OQ: Does it operate correctly throughout the defined operating range?
- PQ: Does it perform consistently under routine production conditions?
- Process Validation: Can the overall manufacturing process consistently produce tablets meeting predetermined CQAs?
2. URS – User Requirement Specification
Before purchasing the compression machine, ensure that the URS defines the intended requirements.
- Machine type – rotary tablet compression machine
- Required output/capacity
- Minimum and maximum tablet weight
- Tablet diameter
- Punch and die configuration
- Number of stations
- Turret speed range
- Compression force range
- Pre-compression force
- Main compression force
- Maximum filling depth
- Maximum tablet thickness
- Feeder type
- Force monitoring
- Weight control system
- Automatic rejection system
- Metal detector, where applicable
- Dedusting system
- Tablet inspection system, where applicable
- Dust extraction
- Lubrication system
- PLC/HMI
- Recipe management
- Alarm/interlock system
- Audit trail and electronic records
- Data backup
- Cleaning requirements
- Product-contact material
- GMP requirements
- Safety requirements
URS requirements should be clear, measurable, and testable.
3. Design Qualification – DQ
DQ confirms that the proposed compression machine design meets the approved URS and GMP requirements.
- Equipment design
- Turret design
- Punches and dies
- Compression mechanism
- Pre-compression system
- Main compression system
- Force monitoring
- Filling mechanism
- Feeder design
- Weight control
- Ejection mechanism
- Dust extraction
- Lubrication system
- Product-contact parts
- Cleaning accessibility
- Safety features
- PLC/HMI
- Data integrity features
4. FAT – Factory Acceptance Test
FAT is conducted at the manufacturer’s site before shipment.
- Equipment identification
- Mechanical operation
- Turret rotation
- Punch movement
- Feeder operation
- Compression operation
- Pre-compression
- Main compression
- Tablet weight control
- Force monitoring
- Ejection system
- Lubrication
- HMI/PLC
- Alarms
- Interlocks
- Emergency stop
- Recipe management
- Data recording
“FAT allows critical equipment functions and specifications to be verified at the supplier’s site before delivery, thereby reducing the risk of major deficiencies being identified only after installation.”
5. SAT – Site Acceptance Test
After receipt at the facility, SAT confirms that the equipment received on site meets the approved requirements.
- Correct machine/model
- Equipment condition
- Accessories
- Punches and dies
- Utilities
- Equipment location
- FAT observations
- Site-specific requirements
- Documentation
6. IQ – Installation Qualification
IQ provides documented evidence that the compression machine is installed according to approved specifications and manufacturer’s recommendations. The following need to be verified
Equipment identification
- Equipment name
- Equipment ID
- Manufacturer
- Model
- Serial number
- Capacity
- Location
Installation
- Foundation/support
- Leveling
- Mechanical installation
- Electrical connections
- Earthing
- Compressed air
- Dust extraction
- Lubrication system
- Cooling system, if applicable
- Other required utilities
Documentation
- Approved drawings
- Equipment manual
- P&ID, where applicable
- Electrical drawings
- Pneumatic drawings
- Spare-parts list
- Maintenance instructions
- Calibration certificates
- MOC certificates
- FAT/SAT documents
- Software documentation
7. Material of Construction
Should verify the material of construction of product-contact components.
- Hopper
- Feeder
- Turret/contact parts
- Punches
- Dies
- Scrapers
- Product-contact surfaces
- Chute
- Gaskets/seals
Verify:
- Material certificates
- Surface finish, where specified
- Product compatibility
- Corrosion resistance
- Cleanability
8. Punches and Dies
- Punch type
- Punch dimensions
- Die dimensions
- Tooling specification
- Punch identification
- Die identification
- Tooling condition
- Tooling inspection
- Tooling storage
- Tooling cleaning
- Tooling maintenance
Defective tooling can contribute to:
- Capping
- Lamination
- Sticking
- Picking
- Weight variation
- Tablet defects
- Poor appearance
9. Calibration
Identify critical instruments and verify their calibration status.
- Compression-force sensors
- Pre-compression force sensors
- Main compression force sensors
- Tablet weight sensors
- Thickness sensors
- Speed/RPM sensors
- Pressure gauges
- Temperature sensors, where applicable
QA should verify:
- Calibration certificate
- Instrument ID
- Calibration range
- Acceptance criteria
- Traceability
- Calibration status
10. OQ – Operational Qualification
OQ verifies and challenges actual versus set Parameter. that the compression machine operates correctly throughout its specified operating ranges.
A. Turret Speed – Verify actual versus set speed.
- Minimum speed
- Optimum operating speed
- Maximum speed
B. Compression Force –
Verify that the machine controls and displays compression force correctly.
- Low compression force
- Optimum compression force
- High compression force
C. Pre-Compression
- Minimum setting
- Optimum setting
- Maximum setting
- Control accuracy
- Display
- Alarm functionality
D. Tablet Weight Control
- Weight-setting function
- Automatic weight control
- Weight monitoring
- Alarm
- Rejection, where applicable
E. Tablet Thickness
- Thickness adjustment
- Thickness monitoring
- Control response
- Alarm limits
11. Feeder Qualification
The feeder is critical because uniform powder/granule flow is required for consistent tablet weight.
- Feeder speed
- Feeder operation
- Powder/granule flow
- Feeder adjustment
- Low-feed conditions
- Alarm functionality
Potential problems: Poor flow → inconsistent die filling → tablet weight variation
12. Weight Control System
An automatic weight control system; it should be challenged during OQ.
- Set-point entry
- Weight measurement
- Feedback mechanism
- Adjustment response
- Alarm
- Rejection
- Data recording
“The weight-control system should be challenged to demonstrate that it can detect and control tablet-weight variation within predefined limits.”
13. Compression Force Monitoring
- Pre-compression force
- Main compression force
Check:
- Accuracy
- Display
- Alarm
- High-force protection
- Data recording
Excessive compression force may contribute to:
- Hard tablets
- Increased disintegration time
- Dissolution problems
- Capping/lamination in some formulations
14. Ejection System
- Tablet ejection
- Ejection force/behavior
- Tablet discharge
- Chute operation
- Rejection mechanism
- Machine alarms
The system should not damage tablets during ejection.
15. Alarms and Interlocks
- Emergency stop
- Guard/door open
- High compression force
- Low lubrication
- Low compressed-air pressure
- Overload
- Feeder fault
- Drive fault
- Weight-control failure
- Metal detector/rejection failure, where applicable
Each critical alarm/interlock should be:
Challenged → observed → recorded → compared against acceptance criteria → approved/rejected.
16. HMI / PLC / Data Integrity
- User access
- Password control
- User roles
- Recipe creation
- Recipe modification
- Recipe approval
- Parameter limits
- Audit trail
- Electronic records
- Alarm history
- Date/time controls
- Data backup
- Data restoration
- Unauthorized changes
- Data retention
“For a computerized compression machine, qualification should not be limited to mechanical functions; computerized-system controls and data integrity should also be appropriately assessed.”
17. PQ – Performance Qualification
PQ demonstrates that the compression machine performs consistently under routine production conditions. When run with:
- Approved product
- Approved formulation
- Routine tooling
- Routine operation
- Normal utilities
- Routine operating conditions
Evaluate appropriate product and process parameters such as:
- Tablet weight
- Weight variation
- Thickness
- Hardness
- Friability
- Disintegration
- Dissolution
- Appearance
- Compression force
- Ejection behavior
18. CPPs – Critical Process Parameters
- Turret speed
- Pre-compression force
- Main compression force
- Fill depth
- Feeder speed
- Tablet thickness
- Compression dwell time
- Granule flow
- Machine speed
- Lubrication conditions
- Ejection conditions
CPP classification should be scientifically justified through development knowledge and risk assessment.
19. CQAs – Critical Quality Attributes
- Appearance
- Identity
- Assay
- Content uniformity
- Weight variation
- Hardness
- Thickness
- Friability
- Disintegration
- Dissolution
- Mechanical integrity
Relationship between CPP → CQA
For example:
Compression force ↑ → hardness may ↑ → disintegration/dissolution may be affected
Poor die filling → weight variation ↑
High turret speed → reduced dwell time → compression behavior may change
20. Common Compression Defects
| Defect | Possible causes |
|---|---|
| Capping | Air entrapment, poor granulation, excessive speed, tooling issues |
| Lamination | Air entrapment, excessive compression, formulation/granulation issues |
| Sticking | Excess moisture, formulation issue, tooling condition |
| Picking | Material adhering to punch face |
| Weight variation | Poor flow, inconsistent die filling, feeder issues |
| Mottling | Uneven color distribution |
| Chipping | Poor granulation, tooling, compression/ejection issues |
| Double impression | Punch rotation/design issue |
| Hardness variation | Compression-force or fill variation |
A proper investigation should consider: Man + Machine + Material + Method + Measurement + Environment
21. Cleaning and Cleaning Validation
The compression machine should be evaluated for cleanability.
- Hopper
- Feeder
- Turret
- Punches
- Dies
- Scrapers
- Product-contact surfaces
- Dedusting system
- Tablet discharge chute
- Difficult-to-clean areas
- Lubrication points
Cleaning validation should demonstrate removal of relevant:
- Previous product
- Residues
- Cleaning agents
- Microbial contamination, where applicable
22. Dust Extraction
Tablet compression generates powder/dust.
- Adequate dust extraction
- Airflow
- Pressure conditions
- Product containment
- Cross-contamination control
- Operator protection
- Cleaning requirements
A poorly controlled extraction system can affect both product quality and operator safety.
23. Risk Assessment
- FMEA
- HACCP
- Risk ranking
- Fishbone analysis
Identify critical:
- Equipment functions
- Parameters
- Instruments
- Alarms
- Interlocks
- Software functions
- Product-contact components
“A documented quality risk management approach to determine which compression-machine functions and parameters have the greatest potential impact on product quality and therefore require enhanced qualification and control.”
24. Deviation During Qualification
Suppose an OQ test fails. The correct QA approach is:
Deviation → Investigation → Impact Assessment → Root Cause → CAPA/Correction → Retest → QA Approval
Do not simply repeat a failed test without documenting the failure and assessing its impact.
25. Change Control and Requalification
- New tooling configuration
- Major machine modification
- PLC/software modification
- Compression-force sensor replacement
- Major feeder modification
- Change in control logic
- Turret replacement
- Major maintenance
- Relocation
- Change in operating range
Determine requalification requirements through:
Change Control + Risk Assessment + Equipment History + Approved SOP/Validation Program
26. Periodic Review
- Deviations
- OOS/OOT
- Equipment breakdowns
- Maintenance history
- Calibration failures
- Change controls
- Complaints
- Product-quality trends
- Qualification status
- Cleaning issues
- Alarm/interlock failures
This helps determine whether requalification is necessary.
Top 15 Questions
1. What is the qualification sequence for a compression machine?
URS → DQ → FAT → SAT → IQ → OQ → PQ → Process Validation
2. What is the difference between IQ and OQ?
IQ confirms correct installation. OQ confirms correct operation within defined ranges.
3. What is the difference between OQ and PQ?
OQ challenges equipment functionality; PQ demonstrates consistent performance under routine production conditions.
4. What are the critical parameters of a tablet compression machine?
Compression force, pre-compression force, turret speed, feeder speed, fill depth, tablet thickness.
5. What are typical CQAs?
Weight, hardness, thickness, friability, disintegration, dissolution, assay, content uniformity, and appearance.
6. Why is compression force important?
It directly influences tablet mechanical properties and can affect disintegration and dissolution.
7. Why is turret speed important?
It affects dwell time, die filling, output, and compression behavior.
8. What is dwell time?
The period during which the tablet is subjected to compression force while passing through the compression zone.
9. What is the purpose of pre-compression?
It helps remove entrapped air and prepares the powder bed before main compression.
10. What would you check during IQ?
Installation, utilities, MOC, drawings, manuals, calibration, identification, equipment components, and documentation.
11. What would you challenge during OQ?
Speed, compression force, pre-compression, filling, weight control, thickness, alarms, interlocks, ejection, feeder, and computerized functions.
12. What would you check during PQ?
Performance under routine production conditions and relevant tablet CQAs and process parameters.
13. What would you do if compression force exceeds the specified limit?
Stop/hold the operation, assess the alarm/interlock, investigate the cause, evaluate affected product, document the deviation, and implement CAPA where required.
14. How do you handle a failed qualification test?
Deviation → impact assessment → investigation → root cause → corrective action/CAPA → repeat test → QA conclusion.
15. When is requalification required?
Based on change control, risk assessment, equipment history, major modifications, relocation, significant failures/maintenance, and the site’s approved requalification strategy.
